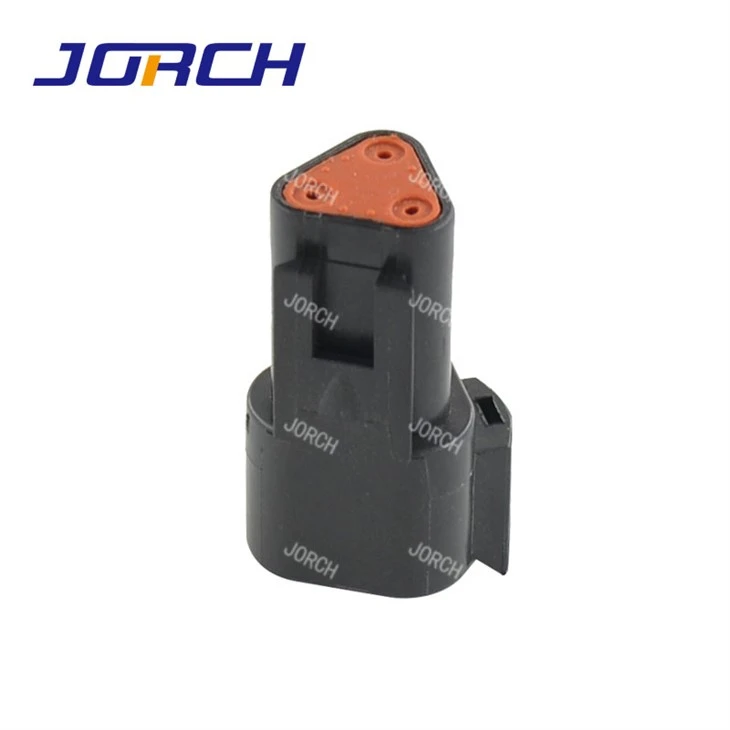

XF DT04-3P-E004 DEUTSCH DT Series Housings Connectors 3 Pin Automotive Connector Black Power Signal

The automotive connector model DT04-3P-E004 is a product that belongs to the DEUTSCH DT series. Here are some key features and specifications of this connector:

• Product Type: Wire-to-Wire Male Terminal Housing
• Number of Positions: 3
• Centerline (Pitch): 8.7 mm (.341 in.)
• Contact Size: 16-gauge
• Contact Current Rating: 13 Amps Max
• Operating Voltage: 250 Vac / 250 Vdc
• Cable Exit Angle: 180 degree
• Insulation Diameter Range: 2.23 - 3.68 mm (.088 - .145 inches)
• Product Length: 43.13 mm (1.698 inches)
• Product Width: 21.13 mm (.832 inches)
• Connector Height: 24.71 mm (.973 inches)
• Operating Temperature Range: -55 degree to 125 degree (-67 degree F to 257 degree F)
• Maximum Operating Temperature: 125 degree (257 degree F)
• Industry Standards: Meets SAE J2030, UL Flammability Rating 12mm Flame Test, Meets Standard UL-94
• Protection Rating: IP68, IP6K9K
• Packing Quantity: 850 pcs/carton

This connector is designed for cable-to-cable connections and has a high degree of environmental sealing performance. It is safe, versatile and reliable, especially suitable for automotive applications. The DT series offers a range of sealed connectors rated for 13A, including options such as standard straight plug-in, flange socket and sleeve adapter. These characteristics of the DT04-3P-E004 connector make it an ideal choice for connecting electrical and electronic components in automotive wiring harnesses, ensuring the transmission of electrical signals and the reliability of circuit connections.
